DiMetal-280

Application: mold manufacturing, industrial precision parts, aerospace, automotive, medical applications, scientific research

form_close
cp_h1
cp_h1

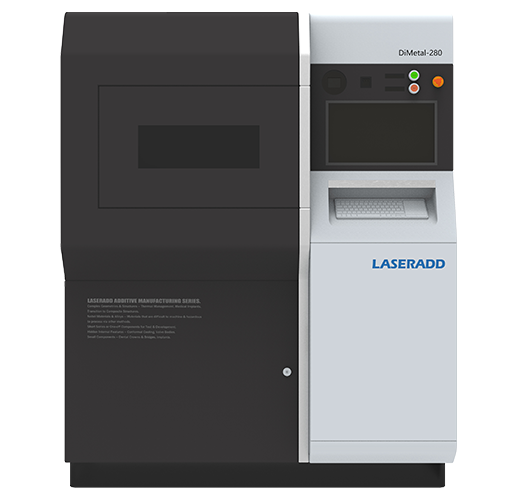

DiMetal-280

Introduce

Dimetal-280 is a medium-sized laser selective melting metal 3D printing equipment developed by Lejia. It has the characteristics of moderate forming size, high forming accuracy, ultra-precision filtration system and fresh air protection system double protection to reduce forming defects and ensure the forming quality of parts. Used in mold manufacturing, industrial precision parts, aerospace, automobile manufacturing, medical applications, scientific research and other small batch production or customized.

Application

  • yl
    medical care
  • qc
    automobile
  • gy
    Industry
  • mj
    mould
  • ny_cpxq_ly04
    scientific research
  • ny_cpxq_ly01
    Aerospace

Advantage

e2

High precision and high quality

High precision scanning galvanometer, high precision and strong stability
ny_cpxq_cy04-1

Fresh air protection system

Lejia fresh air system efficient operation, double circulation wind field protection to ensure more stable forming, extend the service life of optical parts
ny_cpxq_cy03-1

Fully pop-up piston

Equipped with fully pop-up piston platform, convenient and fast replacement of all kinds of metal powder, 100% prevent the occurrence of cross-contamination when replacing the powder
c4

Fully closed vacuum chamber

Low oxygen content in manufacturing environment ensures metal is not oxidized and can be compatible with powder of different specifications

Parameter

  • Device name

    laser

    Scanning system

    Scanning speed

    Net size

    The thickness of the layered

    Feeding way

    Molding material

    The operating system

    The control software

    The data format

    Power supply and power consumption

    External dimensions of equipment

    The environment temperature

  • Dimetal-280 METAL 3D printer

    Infrared Ytterbium doped fiber laser 500W

    High precision scanning galvanometer

    Top 7.8 m/s

    260mm*260mm*300mm

    0.02 mm to 0.2 mm

    One - way flexible steel scraper powder

    Stainless steel, titanium alloy, die steel, aluminum alloy, copper alloy, nickel base alloy, cobalt chromium alloy, tantalum and other high temperature alloy metal powder materials

    Windows 7 64 bits

    Independent development of control and path planning software system

    STL file or other convertible format

    380V 50Hz 8Kw

    2500mm*1030mm*2100mm

    Operating temperature 15-30℃
