Advantage

Large size multi - laser homogeneous surface forming

The forming efficiency can be increased by more than 80% and the forming efficiency of large size parts can be realized

Intelligent operation design

Unattended automatic operation printing, automatic/manual control free switch, self-diagnosis function, safety protection and automatic fault alarm

Fresh air protection system

Lejia fresh air system efficient operation, field mirror air shower shielding protection to ensure high quality and precision forming

Fully pop-up piston

Equipped with fully pop-up piston platform, convenient and fast replacement of all kinds of metal powder, 100% prevent the occurrence of cross-contamination when replacing the powder

Parameter

• Device name/model


  laser


  Molding size


  Feeding way


  Molding material


  The forming efficiency


  The control software


  The data format


  Power supply and power consumption


  External dimensions of equipment

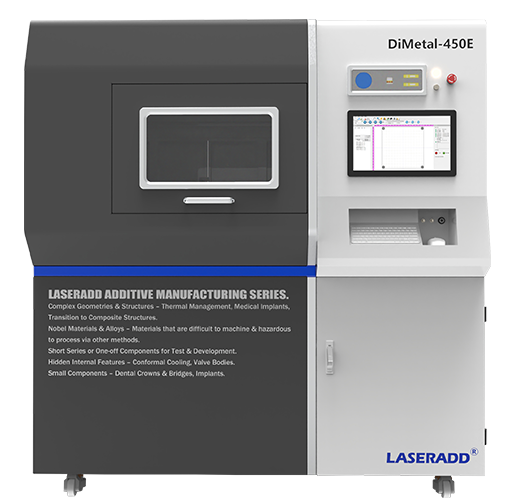

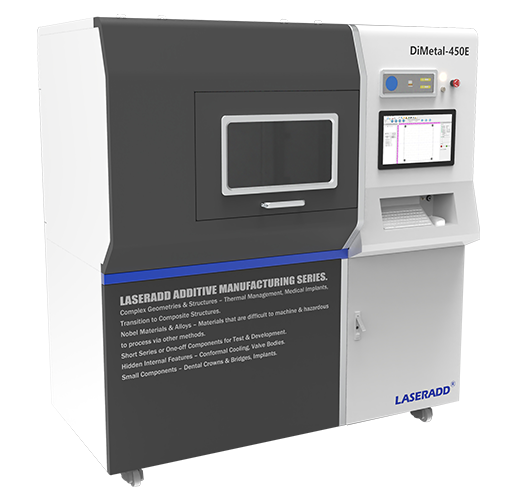

• DiMetal-450E


  Infrared ytterbium doped fiber laser, 500W


  450mm*250mm*300mm (net molding size)


  Feeding powder, bidirectional variable speed powder spreading


  Stainless steel, copper alloy, die steel, aluminum alloy and other metal powder


  90-200g/h


  Independent development of control and path planning software system


  STL file or other convertible format


  220V 50/60 hz 16A 6KW three-phase power


  1950mm (L) *1110mm (W) *2050 (H)

Case

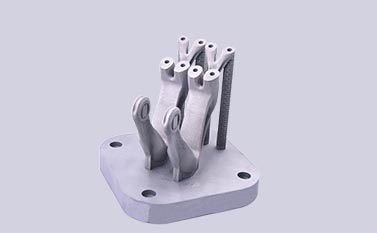

K3

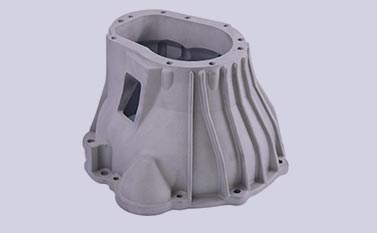

K2

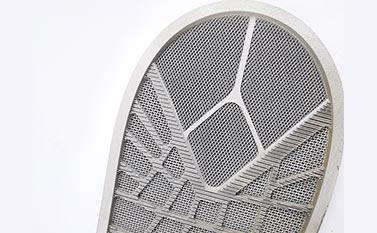

K1

Recommend equipment

DiMetal-650

Scanning speed up to 34m/s
Molding cavity size 625mm*625mm*1100mm
Layer thickness 0.02mm to 0.2mm

Application: aerospace, mold industry, automobile industry and other large size parts are widely used in the industry.

Learn More

DiMetal-50

Scanning speed: maximum 7m/s
Cavity size: 50mm*50mm*50mm
Layer thickness: 0.02mm-0.1mm

Application: jewelry, dentistry, scientific research and education industries

Learn More

DiMetal-50E

Molding size φ70x50
Dimensions 720mm*810mm*1500mm

Metal 3D printer for vocational education and training

Learn More

DiMetal-100D

Maximum scanning speed of 7m/s
Molding cavity size 100mm*100mm*100mm
Layer thickness 0.02mm to 0.1mm

Application: Orthopedics, dentistry, jewelry and scientific research and education

Learn More

DiMetal-100E

Maximum scanning speed of 7.8m/s
Molding cavity size 100mm*100mm*100mm
Layer thickness 0.02mm to 0.2mm

Application: Dentistry, orthopedics, scientific research, education

Learn More

DiMetal-100H

Maximum scanning speed of 7.8m/s
Molding cavity size 100mm*100mm*100mm
Layer thickness 0.02mm to 0.2mm

Application: Dentistry, orthopedics, jewelry, scientific research and education

Learn More
